I understand that typically bolt-on type breakers are preferred in commercial/industrial applications where vibration may be an issue whereas the plug-in type breakers are typically used for residential applications. When removing the panel covers, absolutely no chance of a breaker coming loose.

.

Simply so, what is the difference between a snap in and bolt in breaker?

While snap-in type breaker panels are used for residential and commercial installations, bolt-in breakers typically are used for industrial installations where vibration may be a concern and continuously tight contact is needed.

Additionally, what is a Loadcenter? A panelboard is a component of an electrical distribution system which divides an electrical power feed into branch circuits, while providing a protective circuit breaker or fuse for each circuit, in a common enclosure.

Then, what is a plug in circuit breaker?

Plug-in miniature circuit breakers (MCB) are among the most widely used electrical protection devices, especially in residential and commercial installations. Rated current, which depends on circuit load protected by the breaker.

How do you replace a circuit breaker Bolt?

  1. Turn off the main breaker.
  2. Locate the bolts or screws securing the panel cover of the circuit breaker.
  3. Grab the sides of the cover, pull it off and put it to the side.
  4. Turn the bolt-on circuit breaker to the "Off" position and disconnect the load wire that feeds into the unit.
Related Question Answers

How do you ground a main electrical panel?

How to Run a Ground Wire to an Electrical Panel Box
  1. Place the tapered tip of a ground rod at the desired location.
  2. Drive into ground with the hammer.
  3. When only 3 to 4 inches remain above the surface, attach the grounding wire with the clamp and tighten with the wrench.
  4. Thread loose end of the wire through the wall next to the service panel.
  5. Turn off the main breaker.

Will a QO breaker fit in a QOB panel?

Essentially plug on QO circuit breakers are exclusively used for QO load centers, OEM mounting bases, and can also be used bolt-on panel types NQOD, NQOB and NQ. While bolt on QOB circuit breakers are utilized for NQOB, NQOD and NQ panel boards only.

What is a type QO breaker?

QO® (plug-on) and QOB (bolt-on) one-, two- and three-pole thermal-magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. Plug-on QO circuit breakers are for use in QO load centers, NQ and NQOD panelboards, OEM mounting bases, and Speed-D® switchboard distribution panels.

What is QO Breaker Square D?

The Square D by Schneider Electric QO 20 Amp One-Pole Circuit Breaker is intended for overload and short-circuit protection of your electrical system. The ANSI-certified and UL-listed unit is rated for 120/240 VAC and 10,000 AIR. All QO circuit breakers are equipped with the exclusive Visi-Trip indicator.

What is a tandem breaker?

Tandem breakers, often called split, twin, or double breakers, provide two separate circuits in the space of a regular-sized breaker slot. If you need to add just one or two new circuits, sometimes it's possible to use tandem breakers, but your panel must be designed for them.

What is a pigtail breaker?

The white “pigtail” wire on a GFCI circuit breaker serves two functions. It completes the connection to the panel neutral bar for the neutral load conductor and also completes the power supply circuit for the electronics.

What is the difference between a main breaker panel and a main lug panel?

Main lug panels do not have a main breaker. Instead the line wires run to lugs. The main breaker, which would function as the disconnect, may be located at the meter, or if the main lug panel is used as a sub-panel, it may be connected to the breaker at the main panel.

What type of circuit breaker is used in houses?

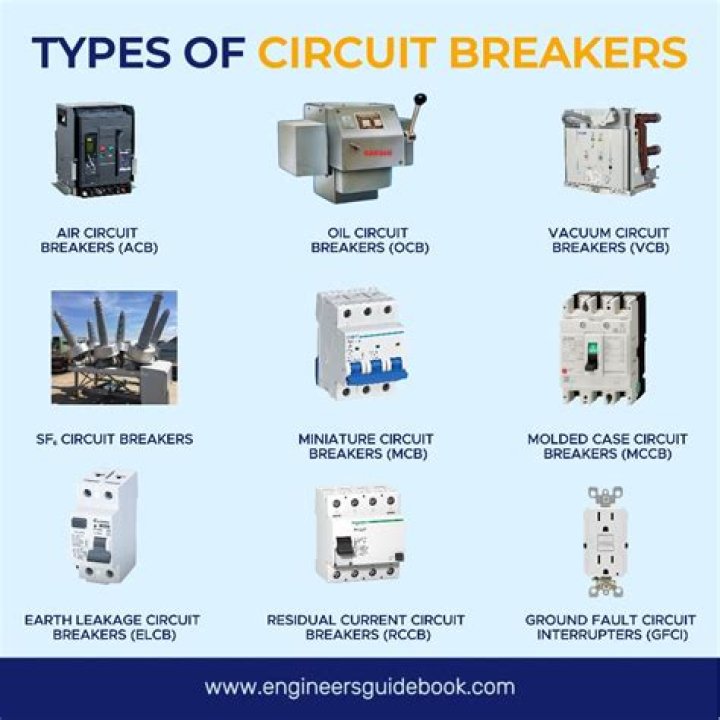

The most widely used electrical circuit breakers for domestic electrical connections are Miniature circuit breakers (MCBs) ,Residual current circuit breaker (RCCB) and Mounded Case Circuit Breaker (MCCB)Following are some basic guide on these domestic Circuit Breakers.

What is a 30 amp breaker used for?

Double-pole breaker The 15-amp and 20-amp breakers often handle baseboard heaters, 30-amp serve water heaters and electric dryers, 40- and 50-amp are for electric ranges, and the 70-amp could serve a large air conditioner or a subpanel.

Can I replace a 15 amp breaker with a 20 amp breaker?

The answer: It's possible, but not advisable without an electrician evaluating the situation. You should never just upgrade from a 15-amp breaker to a 20-amp one just because the current one is tripping. Otherwise, you may burn your house down via electrical fire.

How do you fix a overloaded circuit?

The immediate solution to an overload is simple: Shift some plug-in devices from the overloaded circuit to another general-purpose circuit. Then flip the circuit breaker back on or replace the fuse and turn stuff back on. In practice, however, it isn't so easy to know that you've found a good, long-term solution.

How do you tell if outlet is 15 or 20 amps?

Electrical plugs designated as 20 amp will not fit into 15-amp outlets.
  1. A 15-amp circuit is usually served by 14-gauge wire and is protected by a 15-amp circuit breaker or fuse.
  2. A 20-amp circuit, protected by a 20-amp breaker or fuse, must be served by 12-gauge or 10-gauge wire.

What is the difference between a load center and a panelboard?

What is the difference between a loadcenter and panelboard? A panelboard is typically used in a commercial or industrial application. Panelboards have a can, interior and trim. The can is installed at rough in and the interior later.

What is main panel?

A main panel (or service entrance panel) is simply a panelboard that contains the main service disconnect for a property -- this can be up to six circuit breakers in a rule-of-six (split bus) panel, but is more commonly a single main circuit breaker or fused disconnect (such as a pullout).

What is MLO panel?

An MLO panel, as JW mentioned, stands for Main Lug Only. It is the "opposite" of an MDP, or Main Disconnect Panel. An MLO's busses and branch circuits are supplied by only the lugs at the line side of the panel, whereas an MDP provides overcurrent protection (OCPD) for the branch circuits.

What purpose does an electrical panel serve?

The main service panel performs three basic functions. It distributes power to all the electrical circuits in the home, it contains devices which protect those individual circuits from overload and it provides a master switch which is used to manually cut all power in the home.

What is the difference between a fusible load center and a breaker load center?

What is the difference between a fusible load center and a breaker load center ? Which is primarily used in the industry today ? A fusible load center uses fuses; a breaker panel uses breakers for protection.

What is the difference between a switchboard and a panelboard?

A switchboard is typically a low-voltage (240–690V) three-phase panel containing manually operated molded-case circuit breakers. A panelboard is typically a low-voltage single-phase distribution panel with single- and two-pole circuit breakers.
