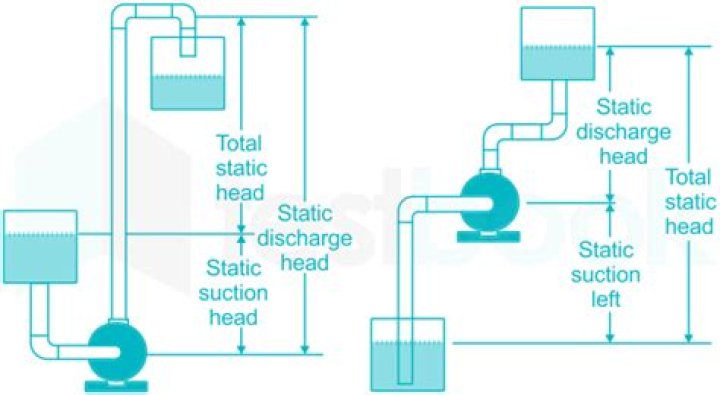

On a suction lift, the total dynamic suction lift is calculated by adding the static suction lift plus the friction loss at flow rate. On a system with the water higher than the pump, the total dynamic suction lift is calculated by subtracting the friction loss from the positive inlet pressure or static head.
.
Furthermore, what does suction lift mean?
Suction lift refers to the pressure (negative pressure) on the suction side of the pump. The pressure can be measured from the centre line of the hydraulic part of the pump down to the water surface on the suction side of the pump.
Also Know, what is suction lift in centrifugal pump? In a suction lift configuration a centrifugal pump takes suction from a source of liquid located below the pump centerline. All centrifugal pumps must be primed prior to operation. They cannot be run dry. A pump layout in which the source of liquid is below the pump is called a suction lift configuration.
Also asked, what is the maximum suction lift for pumps?
Because a perfect vacuum is never achieved and because some lift is lost to friction in the suction line, the maximum actual suction lift for a positive-displacement pump is approximately 22 ft. The maximum actual suction lift for a centrifugal pump is approximately 15 ft when pumping water from an open air tank.
Why is pump suction larger than discharge?
The suction pipe of a centrifugal pump is not necessarily a larger bore (diameter) than the discharge pipe. Suction lines are generally designed to keep friction losses to a minimum. This is in order to ensure sufficient available Net Positive Suction Head (NPSHa) to meet the NPSH required (NPSHr) by the pump.
Related Question AnswersHow far can you lift water with a pump?
The pump at ground level acts as the source of vacuum and has a theoretical lifting capability of about 30 feet (It would lift 34 feet if it could create a perfect vacuum). In practice, 25 feet is all you should design a centrifugal or jet pump to lift in order to have adequate capacity left for water usage.What does suction head lift mean?
Vertical Suction Lift is the vertical distance from the water source to the pump. This is important for draining a basement or deep pond. Maximum Head Lift is the total height from the source of the water to the destination or drainage point. This provides the power to move water over a distance.How are suction lifts calculated?
On a suction lift, the total dynamic suction lift is calculated by adding the static suction lift plus the friction loss at flow rate. On a system with the water higher than the pump, the total dynamic suction lift is calculated by subtracting the friction loss from the positive inlet pressure or static head.What is dry suction lift?
Dry Lift. Dry lift pumping applications often require lifting a fluid from below the level of the pump. This means that the pump has to develop enough negative pressure (or vacuum) to pull the fluid up the inlet line into the pump.What happens if NPSH is negative?
The NPSH is supplied from the system and is solely a function of the system design on the suction side of the pump. Consequently it's controlled by the system designer. If the liquid is below the pump, this becomes a negative value.What factors affect suction head pressure?
Many different factors affect the pressure of the fluid inside the pump housing, the most important of which are water temperature, wet well water depth, suction piping (if present), discharge pressure, and pump inlet geometry.What is suction height?
the suction head in a pumping system is the vertical dimension measured between the surface of the suction tank and the axis of the pump. This height is directly related to the hydrostatic load. This suction height plays a key role in the power of the pump and can not exceed a certain height (due to cavitation).How do you calculate water lift?
Quick Formula- Water horsepower = minimum power required to run water pump.
- TDH = Total Dynamic Head = Vertical distance liquid travels (in feet) + friction loss from pipe.
- Q = flow rate of liquid in gallons per minute.
- SG = specific gravity of liquid (this equals 1 if you are pumping water)
- Water horsepower =
Why can the suction lift of a pump not exceed a certain limit?
When the straw is sucked, or the pump started, this action causes a reduction of atmospheric pressure at the top of the pipe or straw. The flow of liquid up the straw or pipe is made possible by the atmospheric pressure, being greater than the suction pressure, pushing or lifting the liquid up.How deep can a pump lift water?
The shallow well jet pumps draw water from one line situated in wells no deeper than a maximum of 25 feet deep. Deep well jet pumps use two lines, one for pulling the water, and one for pushing the water into the delivery system. Deep well jet pumps can pump water from wells that range from 25 to 110 feet deep.What is maximum head lift?
All water pumps are measured in discharge capacity (GPM), vertical suction lift, and maximum head lift. Maximum Head Lift is the total height from the source of the water to the destination or drainage point. This provides the power to move water over a distance.What is maximum suction pressure?
Maximum suction pressure is the rating of the pump's suction flange, or possibly some other factor which limits suction pressure to the given maximum value.What is the maximum suction head of a pump?
about 26 feetWhy can water only be lifted 10.3 m?
However, 10.3 meters is the limit you can lift using a vacuum. The reason is because your question relies on vacuum pumps using atmospheric pressure to do the heavy lifting. However, there is almost no limit to the height you can pump water using positive pressure.How do you calculate the suction pressure of a pump?
NPSHA (Net Positive Suction Head Available) = Atmospheric pressure (converted to head) + static head + surface pressure (converted to head) – vapor pressure of the liquid (converted to head) – loss in the piping, valves and fittings.What is the highest vacuum achievable?
Vacuum at high altitudes But what happens at locations a mile above sea level? The maximum vacuum that can be achieved in locations above sea level will be less than 29.92-in. -Hg. The force will be limited by the ambient atmospheric pressure.How can I increase my pump efficiency?
4. Effect of specific speed- 4.1. Clearance. Good wear ring with proper clearance improves pump reliability and reduce energy consumption.
- 4.2. Change in surface roughness.
- 4.3. Change in flow path size.
- 4.4. Run one pump instead of two.
