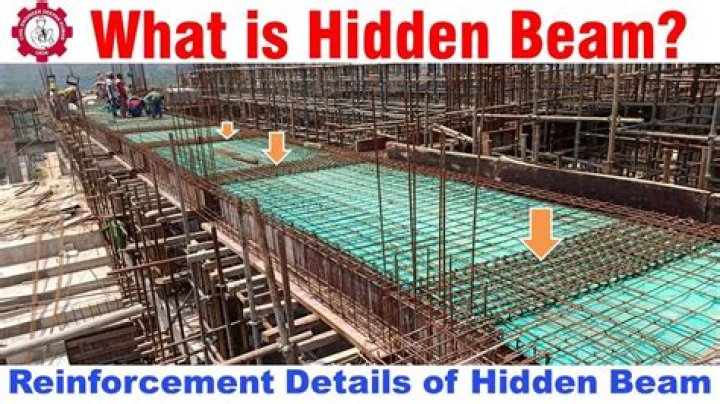

What is a hidden beam?

The Hidden beam is a means to describe the load dispersion on to supporting slab. Hidden beams are generally inserted within the suspended slabs where slab thickness is considerable. The Hidden beam is a virtual beam that was originated by some one to make use of the BEAM free head room.

.

In this way, what is the purpose of hidden beam?

Purpose of Hidden Beam It is used to help disperse loads imposed on the slab for example weight of brickwork masonry wall. It allows to use greater span for the slab. Hidden beams are provided exclusively for architectural aesthetic purposes in the building interior.

One may also ask, what are the types of beams? The four different types of beams are:

• Simply Supported Beam.
• Fixed Beam.
• Cantilever Beam.
• Continuously Supported Beam.

Also asked, what is concealed beam?

Hidden beam is defined as the beam whose depth is equal to the thickness of the slab. They are also known as “Concealed beam ”.

What is primary beam and secondary beam?

Primary Beam: A horizontal beam connecting columns (simply supported or shear connected.) Secondary Beam: A horizontal beam connecting primary beams (simply supported or shear connected.) Function: It will transfer the load to the primary beam and not directly connected to the columns.

Related Question Answers

How do you manually create a beam?

Manual Beam Design

1. 1.DATA. L=3000mm.
2. 2.EFFECTIVE SPAN OF BEAM: Effective Span =c/c of support.
3. 3.SIZE OF BEAM: Effective depth=Span/12.
4. Factored Load =23.694KN/m, Factored BM=Wl²/8 = 30.89KN/m.
5. TO GET AST: Ast(Required) = 388.33mm²
6. 7.CHECK FOR SHEAR:
7. 8.SHEAR REINFORCEMENT:
8. 9.CHECK FOR DEFLECTION:

How do you hide a beam on a roof?

A drywall cover makes the beam virtually disappear into the ceiling, making it look more like a soffit than a beam. Secure the drywall directly to the beam, tape and cover all the nails and corners. Add texture with drywall mud to match the ceilings and walls. When dry, paint the beam to match the ceilings and walls.

What is a slab?

Definition of slab. (Entry 1 of 3) 1 : a thick plate or slice (as of stone, wood, or bread): such as. a : the outside piece cut from a log in squaring it. b : concrete pavement (as of a road) specifically : a strip of concrete pavement laid as a single unjointed piece.

What is tie beam?

Tie beam is a beam connecting two or more columns for making it more stiffens to make the structure as a frame for stability. Tie beam not carry and vertical load of slab or walls but take axial compression load so some time act as a horizontal column.

What is submerged beam?

Submerged beam is one that has the same elevation as the top of the slab as well as the bottom of the slab. In most cases a submerged beam is called hidden.

How many types of slabs are there?

There are four different types of concrete Flat Slabs:-

• Slab without drop and column without column head(capital).
• Slab with drop and column without column head.
• Slab without drop and column with column head.
• Slab with drop and column with column head.

What is beam construction?

In building construction, a beam is a horizontal member spanning an opening and carrying a load that may be a brick or stone wall above the opening, in which case the beam is often called a lintel (see post-and-lintel system).

Which cement is best for roofs?

Which cement is better for RCC roof, PPC or PSC?

• 33 Grade Ordinary Portland Cement. This ordinary 'Portland' cement is used maximum in the country.
• 43 Grade Ordinary Portland Cement. 43 grades of cement are used where high early strength in 1 to 28 days range is required.
• 53 Grade Ordinary Portland Cement.

What is consolidated Beam?

Consolidated beam analysis results reduce file size. In the Simulation Results environment, beam results now are consolidated to reduce the number of results reported. When the beam results are identical for both ends of the beam, EndA and EndB, the results are combined into one value instead of listing them separately

What is inverted beam?

Regular beam itself becomes an inverted beam if the flange of the slab gets supported in the tension zone of the beam if it is simply supported beam or in the compression zone of the cantilever beam. Inverted beams are provided to avoid it's view in porch area or to have more head as per requirements.

What is RCC slab?

RCC slab: reinforced cement concrete slab. It has a combination of steel bars and concrete. Steel bars are placed in concrete with calculated spacing. Cover thickness if concrete is provided around the bars. Bars are tied properly to avoid displacement during pouring of concrete.

Why have a waffle slab?

Waffle slabs achieve their strength by varying the height of the slab above ground. The higher the slab above ground – the deeper the beams. The deeper the beams – the more stiffness the system has. The more stiffness the slab has, the more it can resist ground movement.

What is the meaning of RCC in construction?

CONCRETE. When we say concrete in the building trade, we actually mean reinforced concrete. Its full name is reinforced cement concrete, or RCC. RCC is concrete that contains steel bars, called reinforcement bars, or rebars.

Why beams are provided?

Purpose of beams Counter bending moment and shear forces. Connect the structure together. Provide a uniform distribution of loads.

What is difference between I beam and H beam?

H-beam is a structural beam made of rolled steel. The H-beam has wider flanges than an I-beam, but the I-beam has tapered edges. The width is the flange, and the height is the Web. The difference between both H-beams and I-beams is the flange by web ratio.

What is simple beam?

A simply supported beam is a type ofbeam that has pinned support at one end and roller support at the other end. Depending on the load applied, it undergoes shearing and bending. It is the one of the simplest structural elements in existence.

What is point of Contraflexure?

In a bending beam, a point is known as a point of contraflexure if it is a location where bending moment is zero (changes its sign). In a bending moment diagram, it is the point at which the bending moment curve intersects with the zero line.

What is the main beam in a house called?

July 18, 2018 | Posted by Roofing Superstore. A beam is the main load-bearing structural element of a roof. It supports the weight of joists and other building elements. A joist is a horizontal member that generally runs across a building and is supported by a beam.

What is a overhanging beam?

Overhanging Beam. It is defined as a beam that has its one or both ends stretching out past its supports. It can have any number of supports. In other words, it is a beam when a cantilever portion is hanging out of a simply supported beam. The overhanging beam is shown in Figure (1).
