Logical Link Control (LLC) sublayer provides the logic for the data link. Thus, it controls the synchronization, flow control, and error checking functions of the data link layer. It is responsible for moving data packets from one network interface card (NIC) to another, across a shared transmission medium.

.

Similarly, you may ask, what is the role of data link layer?

It makes sure the appropriate physical protocol is assigned to the data. The data link layer is the second layer in the OSI Model. The three main functions of the data link layer are to deal with transmission errors, regulate the flow of data, and provide a well-defined interface to the network layer.

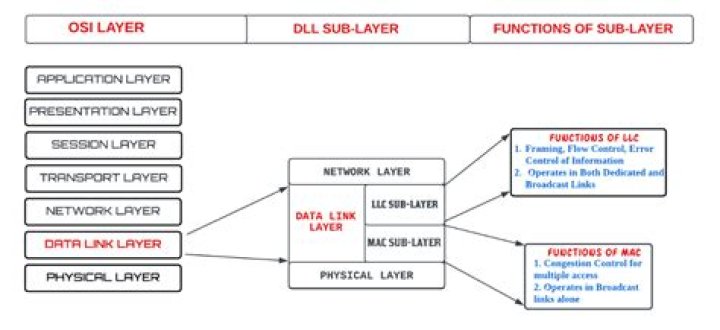

Similarly, which sublayer of the data link layer performs? The data link layer has two sublayers. One is the logical link control (LLC) sublayer, which essentially maintains the communications link between two devices on the network. The other is the media access control (MAC) sublayer which manages the transmission of data between two devices.

Also, what are the sublayers of the data link layer and what do they do?

The data link layer has two sublayers: the logical link control (LLC) sublayer and the media access control (MAC) sublayer. The LLC sublayer can then talk to a number of IEEE 802 MAC sublayers, which control access to the physical media for transport. It is also responsible for the physical addressing of frames.

What data is transferred by the link layer?

The data link layer, or layer 2, is the second layer of the seven-layer OSI model of computer networking. This layer is the protocol layer that transfers data between adjacent network nodes in a wide area network (WAN) or between nodes on the same local area network (LAN) segment.

Related Question Answers

What is the main function of transport layer?

Transport layer is the 4th layer in TCP/IP Model that deals with logical communication between process. It is responsible for delivering messege between network host. It also accept data from application layer and prepare it for addressing at network layer.

Where is the link layer implemented?

For the most part, the link layer is implemented in a network adapter, also sometimes known as a Network Interface Card (NIC).

Which device is used in data link layer?

Two types of Data Link layer devices are commonly used on networks: bridges and switches. A bridge is an intelligent repeater that is aware of the MAC addresses of the nodes on either side of the bridge and can forward packets accordingly.

What is the data link protocol?

data link protocol. In networking and communications, the transmission of a unit of data (frame, packet) from one node to another. Known as a "layer 2 protocol," the data link protocol is responsible for ensuring that the bits and bytes received are identical to the bits and bytes sent.

What is Mac in data link layer?

MAC Layer - Media Access Control Layer The Media Access Control Layer is one of two sublayers that make up the Data Link Layer of the OSI model. The MAC layer is responsible for moving data packets to and from one Network Interface Card (NIC) to another across a shared channel.

What is one main characteristic of the data link layer?

Q&A: What is one main characteristic of the data link layer? A: It shields the upper layer protocol from being aware of the physical medium to be used in the communication.

In which layer of the OSI model is the MAC address?

data link layer

What are the two sublayers?

The data link layer (Layer 2) of the OSI model actually consists of two sublayers: the Media Access Control (MAC) sublayer and the Logical Link Control (LLC) sublayer. Physical addressing for network connections exists at the data link layer. The data link layer combines data bits into entities called frames.

What is the benefit of the OSI model?

The advantages of the OSI model are It distinctly separates services, interfaces, and protocols. Hence, it is flexible in nature. Protocols in each layer can be replaced very conveniently depending upon the nature of the network. It supports both connection-oriented services and connectionless services.

What are the issues in data link layer?

1. Issues in Data Link Layer • The main job of the data link layer is to make the communication on the physical link reliable & efficient. Issues, – Provide interface to the network layer services. – Framing – Flow Control – Error Control – Synchronization – Link Configuration Control.

What is a Layer 3 device?

A Layer 3 switch is a high-performance device for network routing. A router works with IP addresses at layer 3 of the model. Layer 3 networks are built to run on on layer 2 networks. In an IP layer 3 network, the IP portion of the datagram has to be read.

Which layer is port layer in OSI model?

The Ports are defined in the 5th layer of the OSI model which establishes and controls the dialogue between the source and destination. if you are using the OSI model, "Port" is a layer 5 definition, otherwise if you are using the TCP/IP model it will be considered as a layer 4 entity.

What happens at the network layer?

The network layer is the third level of the Open Systems Interconnection Model (OSI Model) and the layer that provides data routing paths for network communication. Data is transferred in the form of packets via logical network paths in an ordered format controlled by the network layer.

What is application layer in OSI model?

An application layer is an abstraction layer that specifies the shared communications protocols and interface methods used by hosts in a communications network. The application layer abstraction is used in both of the standard models of computer networking: the Internet Protocol Suite (TCP/IP) and the OSI model.

Is Ethernet a layer 1 or 2?

The standard for Ethernet is 802.3. Ethernet operates in the lower two layers of the OSI model: the Data Link layer and the Physical layer. Ethernet - Layer 1 and Layer 2. Ethernet operates across two layers of the OSI model.

What do you mean by Ethernet?

Ethernet is a way of connecting computers together in a local area network or LAN. It has been the most widely used method of linking computers together in LANs since the 1990s. The basic idea of its design is that multiple computers have access to it and can send data at any time.

What is a Layer 2 network?

Layer 2, also known as the Data Link Layer, is the second level in the seven-layer OSI reference model for network protocol design. Layer2 is the network layer used to transfer data between adjacent network nodes in a wide area network or between nodes on the same local area network.

What protocol data unit is used at the data link layer of the 7 layer OSI model?

Protocol data units for the Internet protocol suite are: The transport layer PDU is the TCP segment for TCP, and the datagram for UDP. The Internet layer PDU is the packet. The link layer PDU is the frame.
