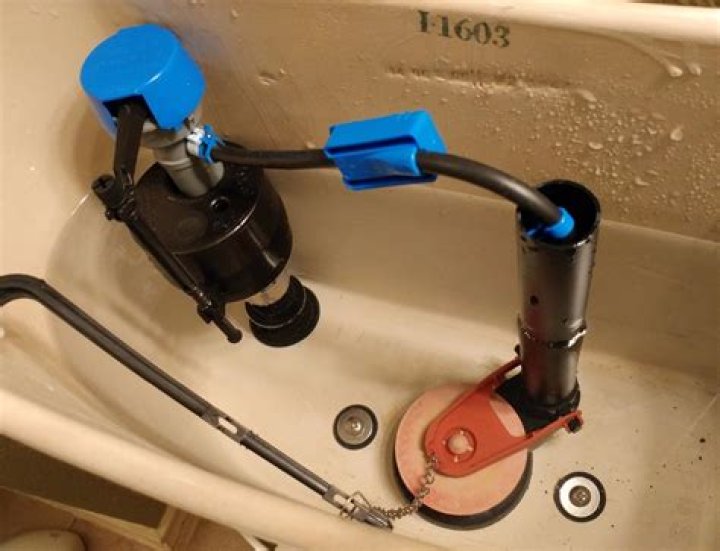

How does toilet refill valve work?

The fill valve brings water from the water supply line into the toilet tank and bowl. When the toilet is flushed, water empties out of the tank and into the toilet bowl. As the water level goes down, the float in the fill valve goes down too, allowing water to flow into the tank.

.

Similarly, how does a Floatless toilet fill valve work?

True floatless fill valves use a pressure-sensing mechanism rather than a float to adjust the water level in the toilet tank. The valve operates under water and can sense the water level based on pressure. To adjust this type of valve, you simply turn an adjustment screw located on the top of the valve.

Beside above, how do you turn off the toilet fill valve? Steps

1. Locate the shutoff valve attached to the pipe behind your toilet.
2. Turn the valve clockwise until it can't turn anymore.
3. Flush your toilet to make sure the water is turned off, if you can.
4. Turn the valve counterclockwise when you're done to turn the water on.

Consequently, how much does it cost to replace a toilet fill valve?

Having a plumber or a handyman replace failing toilet parts like a fill valve or flapper can cost $50-$150 or more, depending on local rates and the worker's qualifications. Replacing a shutoff valve typically costs $25-$50 and replacing a wax ring (and possibly also the closet flange) might cost $50-$200.

How long does a toilet fill valve last?

The filler valves, no matter how cheap, should last more than three years.

Related Question Answers

Are toilet fill valves universal?

Float-Cup Fill Valve This is now the most common type of fill valve, found in most toilets you see. It is easy to install, dependable, and universal since most styles can be easily adjusted for heights anywhere between 7 and 13 inches, depending on which brand you buy.

Will a running toilet increase water bill?

The most common cause for a high water bill is running water from your toilet. A continuously running toilet can waste up to 200 gallons a day. That can double a familyss typical water use, so fix toilet leaks as soon as possible. Some leaks are easy to find, such as a dripping faucet or running toilet.

What causes toilet to keep running after flushing?

Turn off the water and drain the toilet. The flapper is a round rubber seal that stops water from draining from the tank and into the toilet bowl. When you flush the toilet, the chain pulls the flapper up so fresh water can fill the bowl. Problems with the flapper are among the most common causes of a running toilet.

What are the three types of toilet?

Toilet Type From there, you will choose the best style and flushing technology that fits your overall design. Let's look at the three main toilet types: gravity-feed, pressure-assisted, double-cyclone, and waterless.

What is the best type of toilet fill valve?

Top 6 Toilet Fill Valves to Promote Economical Water Consumption

• Fluidmaster 400AH PerforMAX.
• Toto TSU99A.X.
• Korky 528MP QuietFILL Platinum.
• Kohler GP1138930 (Genuine Replacement)
• Plumb Craft Quick Shut-Off Toilet Fill Valve.
• WDI B3260 Universal Fill Valve.

Why does refill tube go into overflow pipe?

It prevents the tank from overflowing, by directing extra water to the bowl. Nothing prevents the bowl from overflowing, other than the fact that once the water level reaches a certain height the toilet flushes. The refill tube goes into the overflow tube and that water fills the bowl after each flush.

Where is the fill valve in the toilet?

The fill valve is the device that controls the flow of fresh water into the tank of your toilet. It is normally mounted on the left side of the toilet tank, with a tailpiece that extends through the bottom of the tank, where it attaches to a supply tube that runs to a fixture shut-off valve.

How do you adjust the float on a toilet?

1. Remove the toilet tank cover and set it off to the side. Be careful.
2. Locate the toilet ball inside of the toilet.
3. Adjust the toilet ball by turning a screw on the toilet valve.
4. Turn the screw clockwise to lower the ball, and thus, lower the water level.

When should I replace my toilet fill valve?

Generally, you should be replacing your toilet fill valve about every 5 years.

Can you clean a toilet fill valve?

Cleaning you fill valve Then wash valve with warm soapy water and then rinse with fresh water. Once a year, or if the fill valve will not turn off, remove the cap assembly and inspect for debris in the valve body seat.

How do you know when a toilet needs to be replaced?

5 Signs You Need A New Toilet

1. There are cracks in your tank. If you frequently see a puddle of water around your toilet, this could be more than a simple leak: You could have cracks in your tank, and the toilet may need to be replaced.
2. You have an old toilet.
3. You feel it wobble.
4. You've had to fix it often.
5. You have a round bowl.

Why does my toilet bowl not fill up with water after flushing?

The most common reason your toilet bowl water level is low is a damaged fill tube. When this happens, the toilet tank fills with water and the valve shuts off the water flow before the bowl fills adequately. SOLUTION: Lift the tank lid to visually inspect the fill tube to determine whether it has shifted or is damaged.

What does the fill valve on a toilet look like?

The toilet in your home has several tank components, but there are only two tank valves at work every time you flush the toilet: the flush valve, which releases the water stored in the tank down into the toilet bowl when you press the flush lever; and the fill valve (also traditionally known as a ballcock), which

Do all toilets have a siphon jet?

In most toilets, the bowl has been molded so that the water enters the rim, and some of it drains out through holes in the rim. A good portion of the water flows down to a larger hole at the bottom of the bowl. This hole is known as the siphon jet.

What are the different parts of a toilet called?

There are really only two main toilet tank parts: the toilet flush valve, which lets water gush into the bowl during the flush; and the fill valve, which lets water refill the tank after the flush.

How does a toilet know when to stop filling the tank?

How does the toilet know when to stop filling? As water fills the tank, a float ball rises until it reaches a certain point, where it begins putting pressure on the ballcock, which shuts off the flow of water. For instance, the float device in older models is often made of copper, whereas newer ones are plastic.

How does the back of a toilet work?

By lifting the flapper up, the water inside the tank is allowed to flow down into the toilet bowl. As the water leaves the tank and enters the bowl, it fills the toilet bowl and the siphon effect occurs, resulting in removal of water and waste. The refill and overflow tube work together to help keep water in the tank.

How much water should be in your toilet bowl?

Federal guidelines require newer toilets to use less water, with 1.6 gallons being the maximum legal amount per flush. But water-efficient toilets can use even less at 1.28 gallons or less per flush.

How does a toilet work diagram?

A toilet has two main parts—the tank and the bowl. The bowl holds water and connects to the drain for disposing of waste water and waste. When the tank's water rapidly drops down into the bowl (upon a flush), the pressure causes the bowl's waste water to go down the drain.
