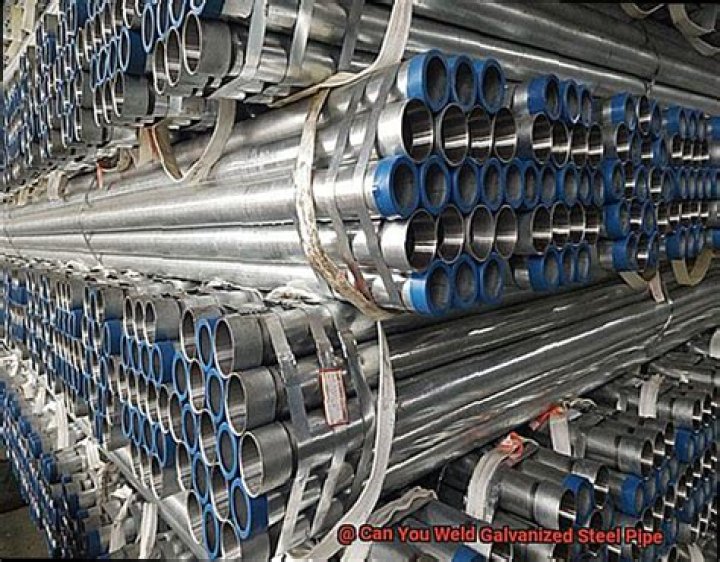

Can you stick weld galvanized pipe?

Yes, galvanized steel can be welded. However, because of the galvanized zinc coating, the metal becomes extremely toxic whenever it's heated. So, it's extremely important that you take the proper safety precautions by wearing a welding mask, a good welding respirator, gloves, and an apron.

.

In this regard, can you stick weld galvanized steel?

When using SMAW ("stick") welding, galvanized steel can be welded in the same manner as uncoated steel. The thicker the zinc coating, the more fumes are generated, and those fumes have to be able to escape easily into the atmosphere and not be forced through the liquid weld metal.

Similarly, what happens when you weld galvanized steel? Welding galvanized steel without removing the galvanize coating will result in emission of a heavy, noxious yellow-green smoke that will envelop the welder. Continuous exposure to this smoke can result in galvanize poisoning. Galvanize poisoning symptoms include a severe headache and nausea.

Herein, is it dangerous to weld galvanized steel?

When welding galvanized steel, a respirator is required so that the zinc oxide fumes from the galvanizing are not inhaled. Inhalation of zinc oxide fumes can cause metal fume fever. Chronic overexposure to zinc oxide can result in death. It is also wise to weld in a well ventilated area, even when using a respirator.

Can you weld galvanized with 7018?

The galvanizing doesn't make any difference, the base metal is what you're welding. You can finish it up with 6010, or weld it out with 3/32″ 7018 using the same amperage setting. You can use any type rod you're accustomed to using on uncoated mild steel pipe.

Related Question Answers

Why do welders drink milk?

The milk theory is that when a welder is exposed to zinc fumes produced by welding galvanized steel, the calcium in the milk supposedly helps prevent the body's absorption of the zinc. This does work to some degree, but it's obviously not a cure for severe exposure to zinc fumes.

What is the best welding rod for galvanized steel?

There are no unique, or galvanized steel-specific tools or materials that you need. Use a 6013, 7018, 6011, or 6010 welding rod. These are the most common rods to begin with, so they shouldn't be hard to find.

Can welding galvanized kill you?

METAL FUME FEVER Generally you'll start to have flu-like symptoms and a sweet or metallic taste in your mouth. Many of the symptoms and their severity depend on what you've been welding. Galvanized steel fumes can really do a number on someone's body while other fumes might cause only a mild amount of pain.

Can you weld galvanized steel with flux core?

After Welding Galvanized Steel with Flux Core Flux core welding generally doesn't produce the prettiest of welds so you will need to clean all spatter, clean up your weld by grinding down or use a wire brush even if its only to remove the slag.

At what temperature does galvanized steel become toxic?

Galvanized fumes are released when the galvanized metal reaches a certain temperature. This temperature varies by the galvanization process used. In long-term, continuous exposure, the recommended maximum temperature for hot-dip galvanized steel is 392 F (200 C), according to the American Galvanizers Association.

How can you tell if steel is galvanized?

How to Test to See Whether Steel Is Galvanized

1. Prepare a solution of three parts salt to one part water that will be used to test the steel sample.
2. Dip an old cloth into the salt and water (saline) solution and wipe it on the sample of steel.
3. Examine the sample for the presence of rust after it has rested for 24 hours.

Can you weld aluminum to galvanized steel?

You can weld aluminum to most other metals relatively easily via adhesive bonding or mechanical fastening. However, in order to weld aluminum to steel, special techniques are required. To avoid this, you must isolate the other metal from the molten aluminum during the arc welding process.

Can you grind off galvanized?

Simply put: Yes, grind marks on hot-dip galvanized steel do not affect the corrosion protection performance of the coating and are acceptable under ASTM A123.

Why does welding galvanized make you sick?

Welding galvanized steel is known to cause metal fume fever/galvanize poisoning. When the welders get too exposed to zinc oxide, galvanized poisoning may surface. The extreme heat from welding galvanized steel may form zinc oxide.

Is cutting galvanized steel bad for you?

One danger of cutting galvanized steel is metal fume fever, a condition caused by the released zinc fumes. Metal fume fever comes with a number of flu-like symptoms that include fever, weakness and fatigue, aches, nausea and chills. Coughing is another common side effect, often accompanied by a dry throat.

Can you weld Galvanised steel with MIG?

If you're planning on MIG or TIG welding, you're almost always going to need to grind off the galvanized layer where you're welding. As for the welding method, once the zinc coating is removed and you're using the proper safety techniques, you can weld galvanized steel just as you would normal steel.

How long does galvanized poisoning last?

EFFECTS OF OVEREXPOSURE Symptoms of Metal Fume Fever include headache, fever, chills, muscle aches, thirst, nausea, vomit- ing, chest soreness, fatigue, gastrointestinal pain, weakness, and tiredness. The symp- toms usually start several hours after exposure; the attack may last 6 to 24 hours.

What's the hardest type of welding?

Tungsten Inert Gas

Can welding kill you?

It is possible to be shocked when welding, especially in wet conditions, but this is usually due to damaged equipment and carelessness. Since voltages involved are low, a welding unit is less likely to kill you than a regular power outlet. (Note: electrocuted means "killed by electricity" and not simply being shocked.)

Why Welding is dangerous?

Health hazards associated with welding, cutting, and brazing operations include exposures to metal fumes and to ultraviolet (UV) radiation. Safety hazards associated with these processes include burns, eye damage, electrical shock, cuts, and injury to toes and fingers.

Can you get sick from welding?

Welding fumes can cause serious health problems for workers if inhaled, according to OSHA. Short-term exposure can result in nausea, dizziness, or eye, nose and throat irritation. Prolonged exposure to welding fumes can lead to cancer of the lung, larynx and urinary tract, as well as nervous system and kidney damage.

Can you paint over galvanized steel?

Galvanized metal is difficult to paint because it's coated with a layer of oil to prevent white rust. Alkyd and oil-based paints may seem to stick at first, but the oily layer eventually "sheds" the paint. Therefore, it's important to follow the correct procedure when painting galvanized metal.

Can galvanized steel rust?

Yes, galvanized steel resistance to rust corrosion depends largely on the type and thickness of the protective galvanized zinc coating, but the type of corrosive environment is also a critical factor. Factors that rust and corrode galvanized steel: Relative humidity above 60%

What is the melting point of galvanized steel?

Galvanised steel does not melt. Zinc melts at 420C, and boils at 907C.
